High output DSP amplifier

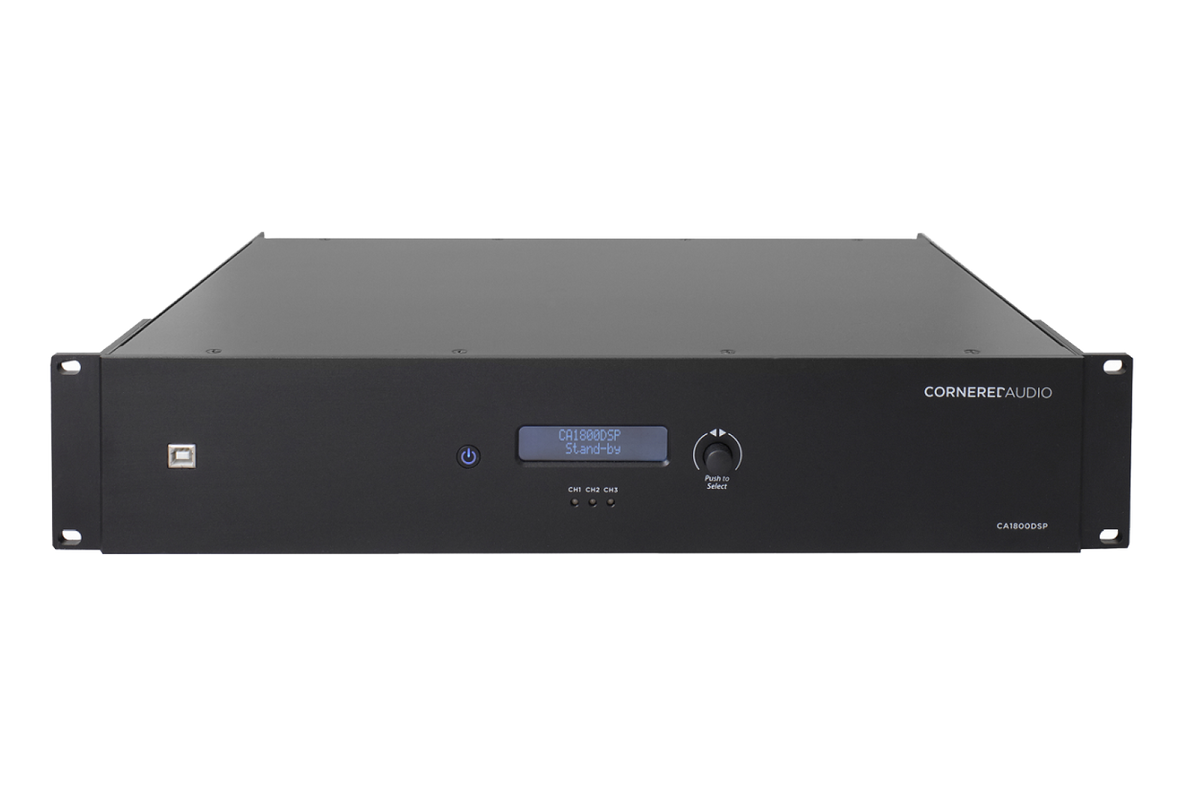

CA1800DSP is an excellent sounding high-power amplifier. It has 3 channels with integrated DSP, designed for large Home Theatre applications. It delivers up to 3x1000W in 4 ohm or 3x600 watt in 8 ohm, all channels driven and allows for 3rd party control.
CA1800DSP provides a full set of DSP features with pre-sets for all Cornered speakers. Set up is easily done through USB or ethernet connection. It includes a highly efficient switch mode power supply and three Class D output stages with ultra-low distortion, high efficiency and a full set of circuit protections. An efficient heat dissipation system and over-heat protection ensures uncompromising reliability.
NOT FOR SALE IN THE US
Features
-
4 input and 3 output channels with full matrix
-
Top grade 24 bit DSP
-
17 EQ points with variable Q per channel
-
Adjustable High pass/Low pass filters
-
Limiter with variable attack/release/threshold
-
RMS compressor and delay in time or distance
-
White/pink noise generator
-
Remote Trigger with link
-
Analogue and digital input/output
-
Optional sleep mode with auto on/off
-
Power factor correction
Network Connection & Control
-
USB or Ethernet LAN RJ45 for system setup,
-
monitoring and control via remote PC software
-
Simultaneous control of up to 32 units via PC software
-
Pre-sets for all Cornered loudspeakers
Specifications
-
Number of Channels: 2
-
Max Output Power (4&8 ohm) 2x140W
-
Max Output power (Bridged) 1x280W
-
Max Output power (100V) 1x280W
-
Output Circuitry: Class D
-
THD+N: <0.003%
-
Signal To Noise Ratio: >105 dB
-
Frequency Response 20-20kHz±0,1dB
-
Power Supply: Universal
-
Operating Range: 110-240V Mains
-
Stand-By 0,25 watt
-
Maximum Input/Output Level: +12 dB
-
Connections: Phoenix with link on input
-
Dimension: 1U half rack space
-
(HxWxD): 44x220x234mm
-
Weight: 2,54 kg
xxxxx xxxxxx xxxxxx
Kan vi korte i teksten?
CA1800DSP is one of the best sounding high-power amplifiers on the market. It is a powerful 3-channel power amplifier with integrated DSP, designed for large Home Theatre applications.
It delivers up to 3x1000W in 4 ohm or 3x600 watt in 8 ohm, all channels driven and allows for 3rd party control.
CA1800DSP provides a full set of DSP features with pre-sets for all Cornered speakers. Set up is easily done through USB or ethernet connection. It includes a highly efficient switch mode power supply and three Class D output stages with ultra-low distortion, high efficiency and a full set of circuit protections. An efficient heat dissipation system and over-heat protection ensures uncompromising reliability.
Features
-
4 input and 3 output channels with full matrix
-
Top grade 24 bit DSP
-
17 EQ points with variable Q per channel
-
Adjustable High pass/Low pass filters
-
Limiter with variable attack/release/threshold
-
RMS compressor and delay in time or distance
-
White/pink noise generator
-
Remote Trigger with link
-
Analogue and digital input/output
-
Optional sleep mode with auto on/off
-
Power factor correction
Specifications
-
24bit/48kHz high end converters
-
3x1000 watt @ 4ohm
-
1x1000 watt @ 8 ohm
-
3x600 watt @ 8ohm (all channels driven)
-
3x600 watt in 70/100V Direct drive
-
Switch-Mode Power Supply
-
Ultra-low distortion Class D amplifier
-
Full protection circuitry including over-current, over/under voltage, output, DC and temperature
Network Connection & Control
-
USB or Ethernet LAN RJ45 for system setup,
-
monitoring and control via remote PC software
-
Simultaneous control of up to 32 units via PC software
-
Pre-sets for all Cornered loudspeakers
